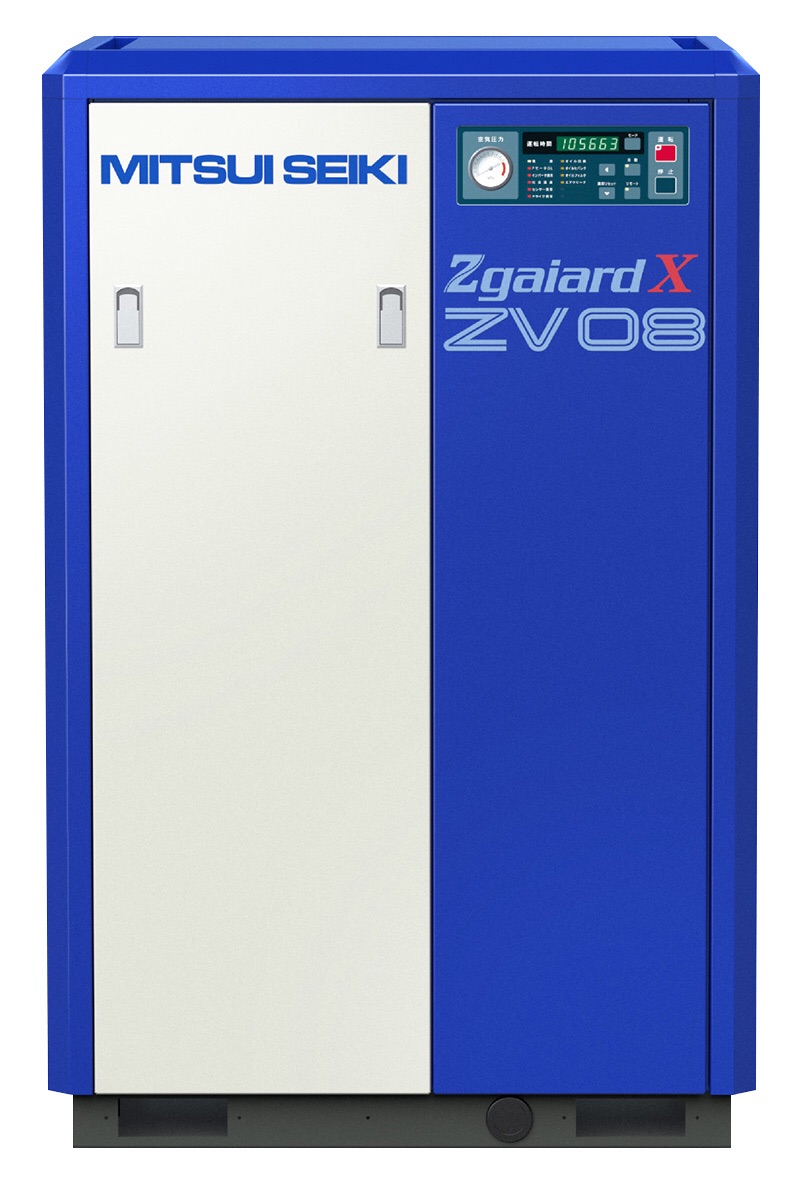

ZV08AS5-R

     Mitsui Seiki Air Compressors - Oil Flooded ---    Inverter - Air Cooled    ---

Previous ‹‹ » Next

ZV08AS5-R


- An ideal energy saving compressor.
- The compressing efficiency is drastically enhanced by the adoption of the compressor dedicatedly developed for each model.
Installation of the inverter realizes total energy saving.
- There is no waste because air of required pressure is taken only for necessary volume with minimum power.
- Although small, the direct-couple driving with the motor increases the air volume and reduces the maintenance work.

                                     Model ZV08AS5-R
Items Unit
Power frequency Hz  50 / 60
Power supply voltage V 200 / 220 /415
Free air delivery (0.7MPa)  m3 / min 1.2
Delivered air pressure MPa 0.7
Delivered air pressure MPa  0.6 to 0.93
Presure control method   Constant pressure control by inverter
Intake air pressure & temperature       Atmospheric pressure (0 to 40°C)
Main motor power kW  7.5
Motor type     3 phase squirrel cage, 2P totally enclosed external fan
Starter   Inverter start
Drive system   Direct coupled motor
Cooling system     Air cooling
Fan motor power kW 0.4 (Inverter control)
Oil filling quantity 10
Cooling water amount  / min -
    Dryer Air dew point at outlet  °C   10 (under increased pressure)
Refrigerant     R·407
Discharge pipe diameter  R   3/4
Dimension,L×W×H (body)  mm   905 x 705 x 1400
Total mass (dry)[without dryer]  kg 430 [410]
Noise level [OP1.5m]  dB·A 52
Dimension,LxWxH (Without dryer) mm 905 x 705 x 1400
