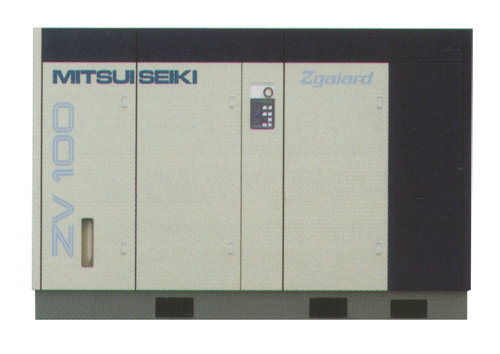

ZV100WSi

     Mitsui Seiki Air Compressors - Oil Flooded ---    Inverter - Water Cooled    ---

Previous ‹‹ » Next

ZV100WSi


                                     Model ZV100WSi
Items Unit
Power frequency Hz  50 / 60
Power supply voltage V 400
Free air delivery (0.7MPa)  m3 / min 19.0
Delivered air pressure MPa 0.7
Delivered air pressure MPa  0.54 to 0.93
Presure control method   Constant pressure control by inverter
Intake air pressure & temperature       Atmospheric pressure (2  to 40°C)
Main motor power kW  100
Motor type     Totally enclosed fan cooled IPM motor
Starter   Inverter starter
Drive system   Direct coupled motor
Cooling system   Water cooled
Fan motor power kW 0.15/0.22
Oil filling quantity 80
Discharge pipe diameter  R JIS 3B (80A) Flange
Dimension,L×W×H (body)  mm 2650 x 1350 x 1750
Total mass (dry)[without dryer]  kg 2500
Noise level [OP1.5m]  dB·A 74

Noise values measured in noiseless environment at distance of 1.5 meters from front, at height of  1m, with load 100% (at 0.7MPa)
Cooling water volume (water temp. 32;): 100kw: 130L/mn; 150kw: 200L/min
